A guy grip is a type of hardware used to secure and tighten guy wires in the electric power system.It is also known as guy grip dead end or guy wire dead end grip.Spiral design of guy grips dead end can reduce stress and more effectively transmit and communicate, making the structural support more stable.

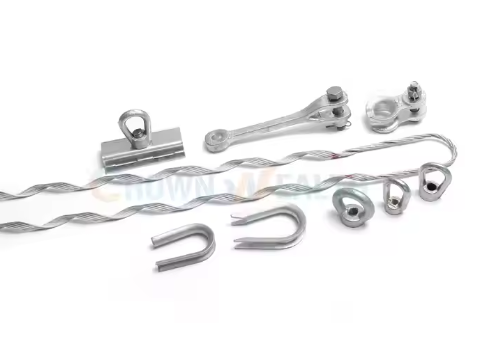

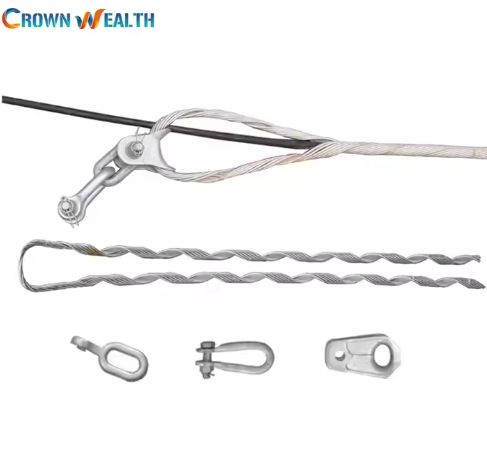

Components of The Guy Grip

The main function of guy grip is to fix guy wires,it can connect other pole line hardware to work together and is an important component of the pole clamp system.

Main Body – Composed of five galvanized steel wires arranged and rotated together.

Serrated Groove – Having serrated grooves increases friction and improves grip.

Armor Rods – Wrapped around the conductor to prevent wear and provide additional support.

Suspension Hardware – Used in combination with bolts and nuts to ensure stability and corrosion resistance.

Eye Cable – Connect hooks and shackles to the corresponding connection points.

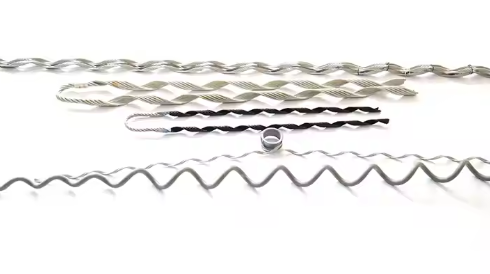

Types of Guy Grip

By model、material、mean diameter、guy sizes、guy strand、length、color、strand size to choose the best guy wire grips for you.

Application Areas of Guy Grip

1.Power utility sector:

Dead end grips work in the power utility sector for overhead and fixed cables, lines to ensure good connections between various fittings.

2.Communication  industry:

Dead end grips are used to fix antennas and cables on communication poles, as well as reinforcing cores for communication cables.

3.Transportation sector:

Dead end grips are used for the locking of scaffolding or protective barriers on traffic roads.

4.Construction industry:

Produce reinforcement bars for strengthening building structures.

5.Machine manufacturing sector:

Dead end grips are used to make steel wire ropes for industrial springs and cranes, ensuring the safe operation of equipment.

Characteristic of The Guy Grips dead end

1.Mechanical strength – Guy grips can withstand high-strength tensile and impact forces, has good wear resistance, and is not easily broken.

2.Service life – Made of galvanized steel or aluminum alloy material, with a service life between 15 and 30 years.

3.Corrosion resistance -Dead end guy grips are made of galvanized steel or aluminum alloy material, with a protective coating on the surface, it has strong corrosion resistance.

4.Conductivity – Made of metal material, with low resistance, smooth surface, and good conductivity.

5.Sustainable development – Guy grips dead ends that have less pollution during the production process, and the material can be recycled and reused after its service life, reducing resource waste.

How to install The Guy Grips

Step 1: You can fix one end of the guy grips to the end of the optical cable using screws and nuts.

Step 2: Use a traction or tension machine to wrap the guy wire dead end grip onto the cable.

Step 3: After wrapping, you can use screws and nuts to secure the guy wire to the other end of the optical cable to prevent loosening.

Frequently Asked Questions

• How does the dead end guy grip to ensure transmission?

It passes through supporting and controlling tension, the cables are prevented from sagging, ensuring stable power transmission.

• How many notches does the guy grips have?

Guy grip wires of different sizes have varying numbers of notches, approximately ranging from 7 to 10.

• What issues should be noted when installing the guy grips?

Wear protective equipment and safety helmets during installation. When winding the guy grip to the end, it is necessary to pay attention to promptly turning off the traction machine to protect one’s own safety.
