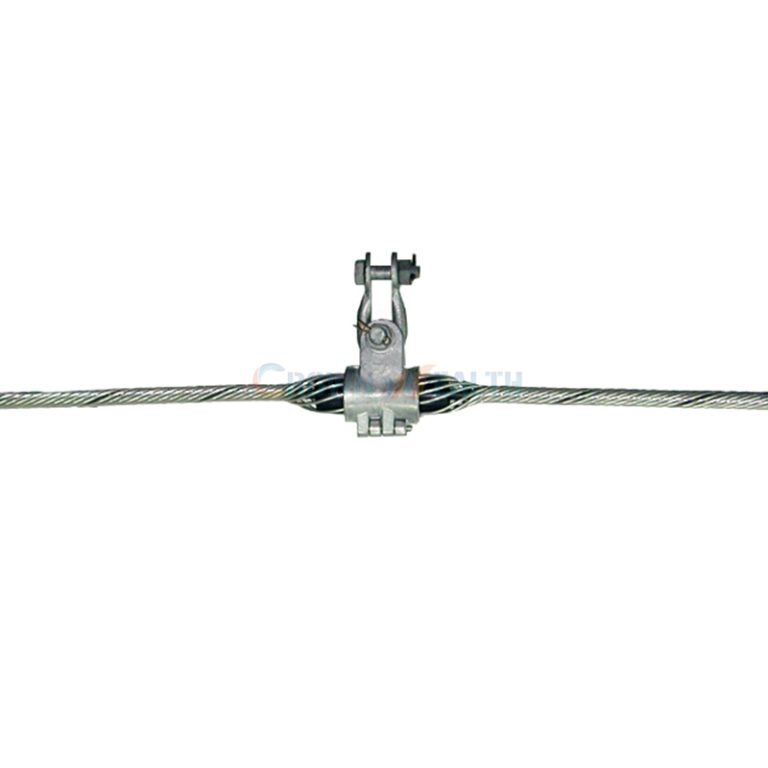

Hbcrownwealth ADSS suspension clamp is a versatile and reliable overhead line solution for safely install suspending ADSS (all-dielectric self-supporting) overhead cables.
Suspension clamps for ADSS cables are also called preformed suspension clamps, including ADSS Suspension Clamp, Armor Grip Suspension Clamp and J Hook Suspension Clamp. Hbcrownwealth provides a complete set of aluminum or galvanized steel shell cladding, EDPM rubber lining, bolts and nuts, which are the connection hardware on the transmission line pole (tower) to support and protect ADSS/OPGW cables from damage.

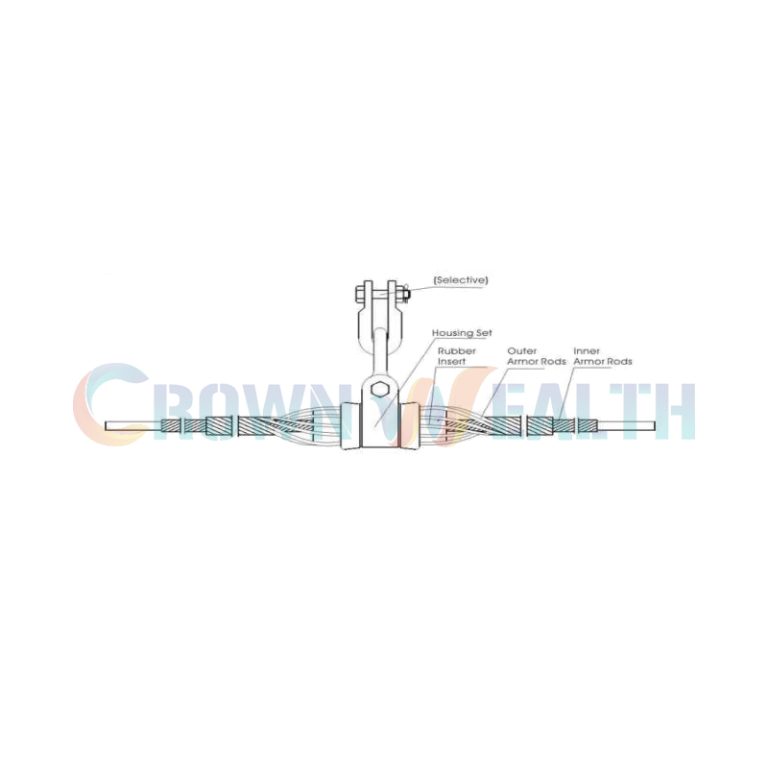

It consists of two shells, two rubber blocks, an outer preform rod, and an inner preform rod.
We have a relatively complete suspension clamp size specification, which can accurately match the overhead line strength and span cable clamp according to your different cable diameters and cables of different materials, and can customize exclusive products according to your design.
As your professional pole line hardware manufacturer and partners, Hbcrownwealth can not only provide you with high-quality products, but also help you reduce costs and maintain market competitiveness. If you need to buy overhead line hardware in China, please contact us now to provide you with free sample testing and preferential quotations.
● High tensile strength and stability
● Strong corrosion resistance, acid and alkali resistance on site
● Wide grip and mechanical resistance, even stress distribution
● Can clamp N cables with small diameter
● Insulated EDPM rubber lining and high-quality aluminum alloy housing
● Suitable for full range of cable diameters
● High quality at competitive price
● Easy and quick installation
Cable accessories for fixing ADSS optical cables and installing them on poles and towers
Widely used in cable connection accessories to protect wires, conductors, and cables in supporting transmission lines
Suitable for ADSS optical fiber cables
Telecommunication networks, local area networks, FTTH
Other applications in optical fiber systems
| Tangent Clamp for ADSS | ||
| Parts No. | Dia. of cable(mm) | Span(m) |
| CW-TCAD-010 1110 | 9.0-11.1 | 100 |
| CW-TCAD-010 1330 | 11.2-13.3 | 100 |
| CW-TCAD-010 1550 | 13.4-15.9 | 100 |
| Armor Grip Suspension Clamp | ||||
| Parts No. | Dia. Cable /mm | Length /mm | Weight /kg | Span /m |
| CW-SSCA-030 | 9.0-12 | 1040-1080 | 0.38-0.95 | 200-300 |
| 12.1-14.1 | 1115-1210 | 0.96-1.15 | ||
| 14.2-15.1 | 1230-1270 | 1.27-1.37 | ||
| CW-SSCA-040 | 11.7-12.9 | 1200-1270 | 1.07-1.2 | 300-400 |
| 13.0-14.3 | 1305-1370 | 1.28-1.43 | ||
| 14.4-15.1 | 1380-1410 | 1.46-1.53 | ||
| J Hook Suspension Clamp | |||
| Parts No. | Description | Material | Cable Size |
| CW-SC | J Hook Suspension Clamp for Single Cables | Galvanized Steel + Rubber | 5-20mm |
| CW-SDC | J Hook Suspension Clamp for Double Cables | Galvanized Steel +Rubber | 14/16mm, 7/18mm |
