Pole Band

Pole Band

Pole bands are hardware accessories used to fix on poles. They are also called utility pole band clamps or pole fastening clamps. Hbcrownwealth Pole bands can be divided into single offset pole bands, double offset pole bands, adjustable pole bands and link style pole bands according to their appearance and structural design.

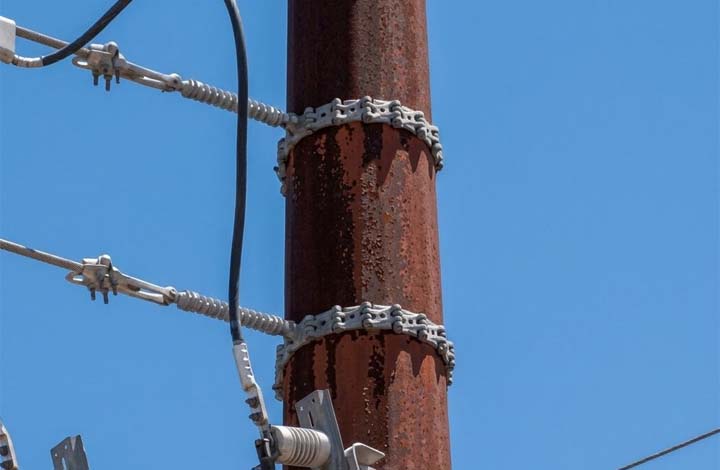

It provides ideal support for the guy wires and dead-end clamps of steel, wood or concrete poles (non-square). It does not require prefabricated bolt holes on the poles and can be easily installed on the poles.

To ensure the stability of your overhead lines, we use high-quality galvanized steel materials. Our pole bands have high tensile strength and corrosion resistance, will not break when the line cable between two poles is subjected to high tensile loads.

As one of the leading pole line hardware manufacturers in China, Hbcrownwealth has pole bands of all sizes for you to choose from, which can be applied to your poles of different diameters. We can also provide you with ODM and OEM services. If you plan to import pole bands in China, please contact us immediately, we provide you with the best ex-factory prices.

Types of Pole Bands for Utility

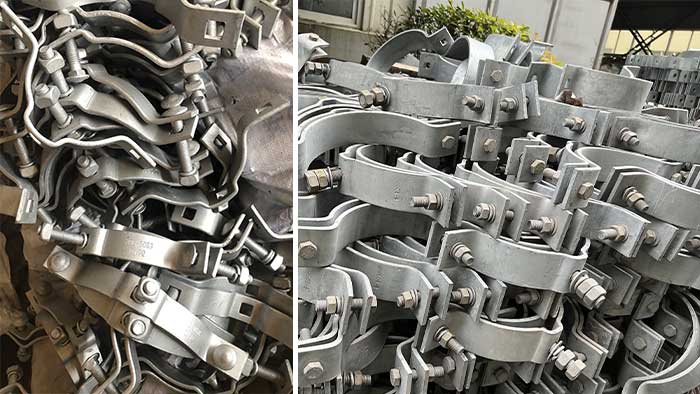

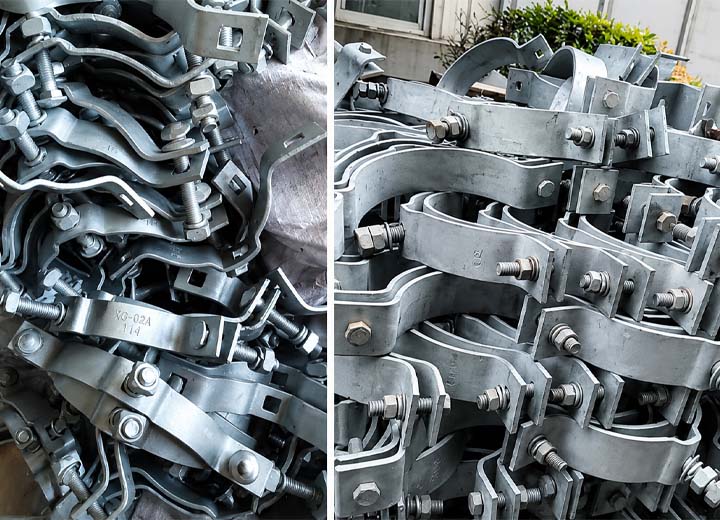

Pole band clamps

Hbcrownwealth Pole Bands Features

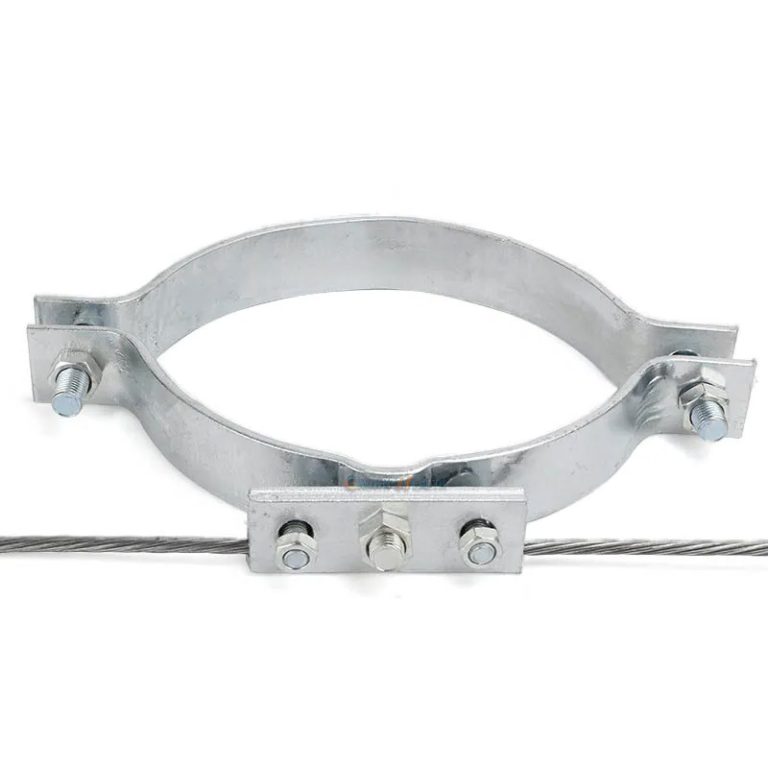

◇ Cable pole bands are commonly used to connect ADSS and OPGW cables

◇ Carbon steel tensile strength up to 560N/mm²

◇ Pole band pieces are connected by bolts

◇ Bolts and nuts are made from grade 2 steel and are hot-dip galvanized

◇ The surface is hot-dip galvanized in accordance with ASTM specifications

◇ Pole bands will not break or crack after flat steel stamping

◇ Widely used in various types of utility poles

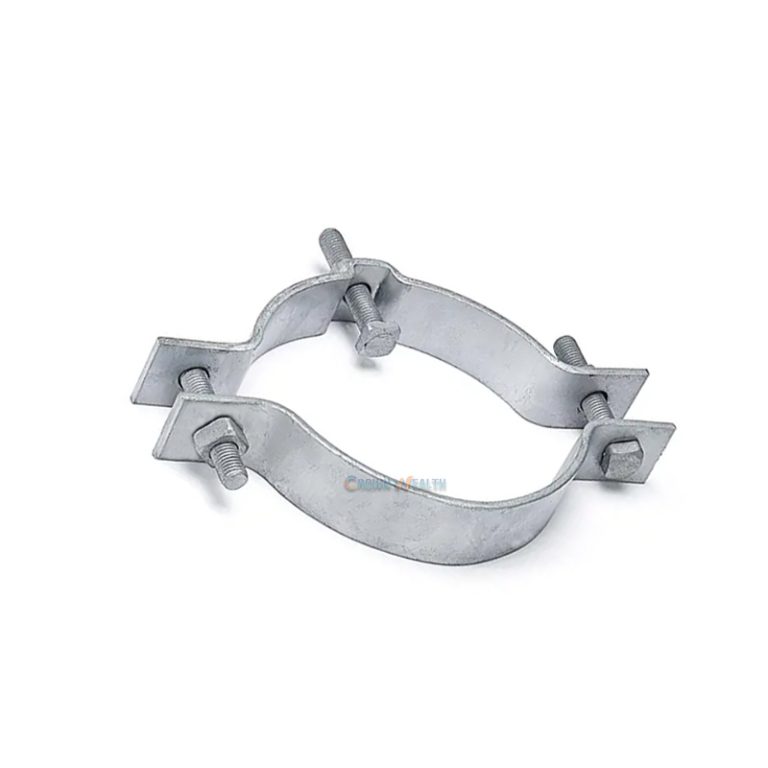

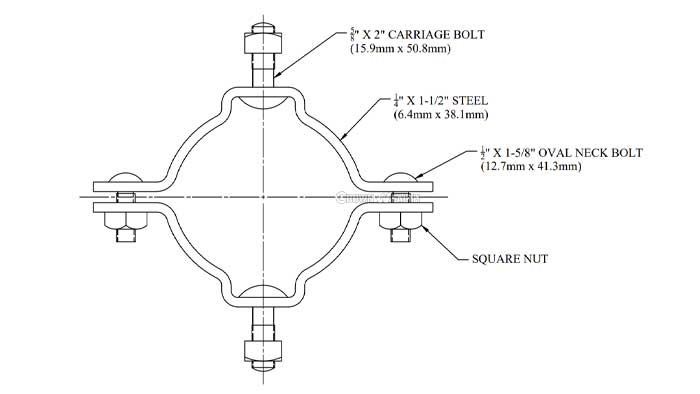

Standard Pole Band and Custom

◇ 5/8″ X 2″ Carriage Bolt

◇ 1/4″ X 1-1/2″ Steel Band

◇ 1/2″ X 1-5/8″ Oval Neck Bolt

◇ Square Nut

Hbcrownwealth can fully customize pole bands for you according to your design requirements. Since we are the source factory, contact us immediately to get free samples.

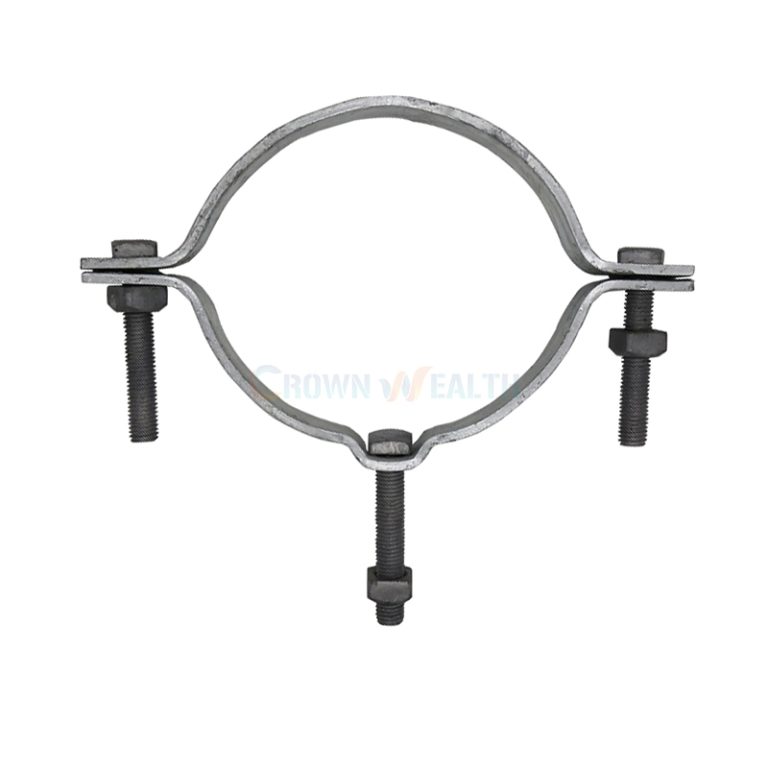

Double Offset Pole Bands

Hbcrownwealth Pole Band Clamps Specification

Parts No. Description Pole Diameter Material
Max/mm Min/mm
CW-SPB Single Offset Pole Bands 228 ~ 330 203 ~ 304 Galvanized Steel
CW-DPB Double Offset Pole Bands 228 ~ 330 203 ~ 304



Part No. Description Pole Size Bracket Size Material
CW-APB01 Adjustable Pole Band 7″-9-1/2″ 1/4″X 4″Galvanized Steel
CW-APB02 8″-11″
CW-APB03 9-1/2″-13-1/2″
CW-APB04 12″-16″
