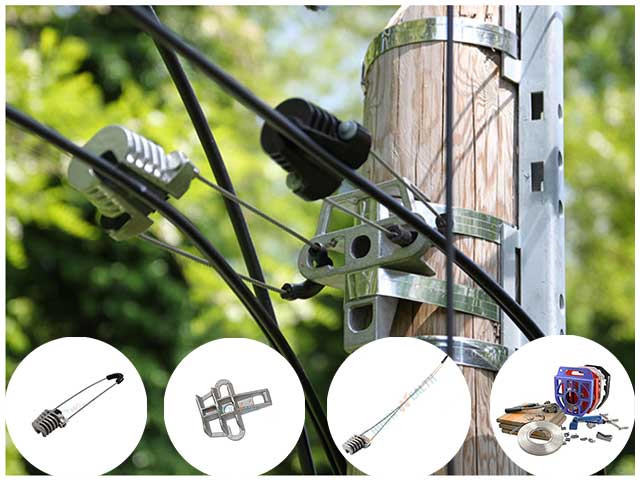

Anchor clamps are used to terminate aerial figure-8 cables and aerial figure-8 duct structures with steel messenger deployedon telecommunications networks characterised by spans up to 90m.
Anchor clamps are used to terminate aerial figure-8 cables and aerial figure-8 duct structures with steel messenger deployedon telecommunications networks characterised by spans up to 90m.
Description
The anchor clamps are used to enable the termination of aerial figure 8 cables or aerial figure 8 duct structures with steel messenger. The anchor clamps included in the AC range are to be installed on fibre optic overhead access networks where spans do not exceed 90 meters.
Anchor clamp presents an open conical body, a pair of metallic jaws and a flexible bail. Thanks to their automatic conical clamping system, the ACx anchor clamps do not require any additional tools for their installation or any prior cable preparation. When tightening, the jaws perforate the messenger’s sheath and anchor on the steel part.
Features:
Simple, fast and toolless installation
Effective cable clamping due to the specific wedge design
High mechanical performances
Available in different bail lengths to adapt to the cable’s bend radius
| Parts NO. | ø ESSENGER | BAIL LENGHT | MATERIAL | MTL * | ||
| BODY | JAWS | BAIL | ||||
| CW-AC6-140 | 3-6mm | 140mm | Thermoplastic | Zinc Alloy | Stainless Steel | 1000N |
| CW-AC6-260 | 260mm | |||||
| CW-AC7-200 | 4-7mm | 200mm | Aluminum Alloy | 2500N | ||
| CW-AC7-260 | 260mm | |||||
| CW-AC7-500 | 500mm | |||||
| CW-AC10-260 | 6-8mm | 260mm | 5000N | |||
| CW-AC10-500 | 500mm | |||||
Description
The anchor clamps are used to enable the termination of aerial figure 8 cables or aerial figure 8 duct structures with steel messenger. The anchor clamps included in the AC range are to be installed on fibre optic overhead access networks where spans do not exceed 90 meters.
Anchor clamp presents an open conical body, a pair of metallic jaws and a flexible bail. Thanks to their automatic conical clamping system, the ACx anchor clamps do not require any additional tools for their installation or any prior cable preparation. When tightening, the jaws perforate the messenger’s sheath and anchor on the steel part.
Features:
Simple, fast and toolless installation
Effective cable clamping due to the specific wedge design
High mechanical performances
Available in different bail lengths to adapt to the cable’s bend radius
| Parts NO. | ø ESSENGER | BAIL LENGHT | MATERIAL | MTL * | ||
| BODY | JAWS | BAIL | ||||
| CW-AC6-140 | 3-6mm | 140mm | Thermoplastic | Zinc Alloy | Stainless Steel | 1000N |
| CW-AC6-260 | 260mm | |||||
| CW-AC7-200 | 4-7mm | 200mm | Aluminum Alloy | 2500N | ||
| CW-AC7-260 | 260mm | |||||
| CW-AC7-500 | 500mm | |||||
| CW-AC10-260 | 6-8mm | 260mm | 5000N | |||
| CW-AC10-500 | 500mm | |||||
