Fiber Optic Q Hook Bracket is a support fastening device designed to fasten spiral Q hook bolts (Pigtail Bolts) installed on the banding bracket base to fix to the pole or building member structure, which can support sufficient load for figure-8 cable, ADSS cables and suspension clamps.
Fiber Optic Q Hook Bracket is a support fastening device designed to fasten spiral Q hook bolts (Pigtail Bolts) installed on the banding bracket base to fix to the pole or building member structure, which can support sufficient load for figure-8 cable, ADSS cables and suspension clamps.
Description
Fiber Optic Q Hook Bracket also called FTTH suspension bracket, fiber cable suspension bracket, fiber optic cable clamp bracket, is designed for tensioning or lowering the suspension of cable clamps or preformed guy grips in outdoor overhead FTTH network constructions.
Hbcrownwealth FTTH suspension bracket is made of high-quality high-strength steel, using galvanizing production process, the surface treatment is uniform and smooth, in line with ASTM A153 standards.
Hbcrownwealth Can provide you with singleor double row hole steel band brackets, depending on your on-site overhead line needs. Because double row hole steel band brackets can carry larger external loads.
This FTTH suspension bracket maximum load (working) – 0.5 kN. The consists of: Eye Bolt – 1 pc; Half-platform – 1 pc; Hex Nut – 2 pcs.
Hbcrownwealth is a FTTH pole bracket manufacturer in China, with advanced automated stamping, forging and welding equipment, can provide you with ODM and OEM services. Contact us now to get free samples and the most competitive factory prices.
Feature
Convenient product design
Galvanized steel material for long-term use

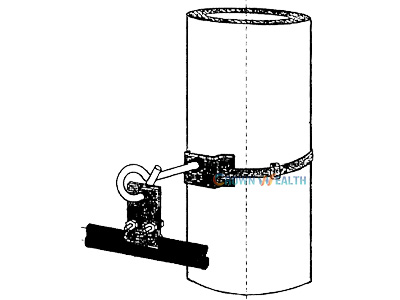

The mounting device is mounted on a pole using stainless steel banding straps and stainless steel buckle.
Can be applied to all suspension clamps Hbcrownwealth offer
Sufficient load can be applied to ADSS cable and suspension guy grips
Excellent environmental stability
Competitive price
Parameters
| Parts No. | Description | Material | Scope of Steel Banding |
| CW-FOQB | Fiber Optic Q Hook Bracket | Galvanized Steel | 12 – 20 mm |
Description
Fiber Optic Q Hook Bracket also called FTTH suspension bracket, fiber cable suspension bracket, fiber optic cable clamp bracket, is designed for tensioning or lowering the suspension of cable clamps or preformed guy grips in outdoor overhead FTTH network constructions.
Hbcrownwealth FTTH suspension bracket is made of high-quality high-strength steel, using galvanizing production process, the surface treatment is uniform and smooth, in line with ASTM A153 standards.
Hbcrownwealth Can provide you with singleor double row hole steel band brackets, depending on your on-site overhead line needs. Because double row hole steel band brackets can carry larger external loads.
This FTTH suspension bracket maximum load (working) – 0.5 kN. The consists of: Eye Bolt – 1 pc; Half-platform – 1 pc; Hex Nut – 2 pcs.
Hbcrownwealth is a FTTH pole bracket manufacturer in China, with advanced automated stamping, forging and welding equipment, can provide you with ODM and OEM services. Contact us now to get free samples and the most competitive factory prices.
Feature
Convenient product design
Galvanized steel material for long-term use
The mounting device is mounted on a pole using stainless steel banding straps and stainless steel buckle.
Can be applied to all suspension clamps Hbcrownwealth offer
Sufficient load can be applied to ADSS cable and suspension guy grips
Excellent environmental stability
Competitive price
Parameters
| Parts No. | Description | Material | Scope of Steel Banding |
| CW-FOQB | Fiber Optic Q Hook Bracket | Galvanized Steel | 12 – 20 mm |
