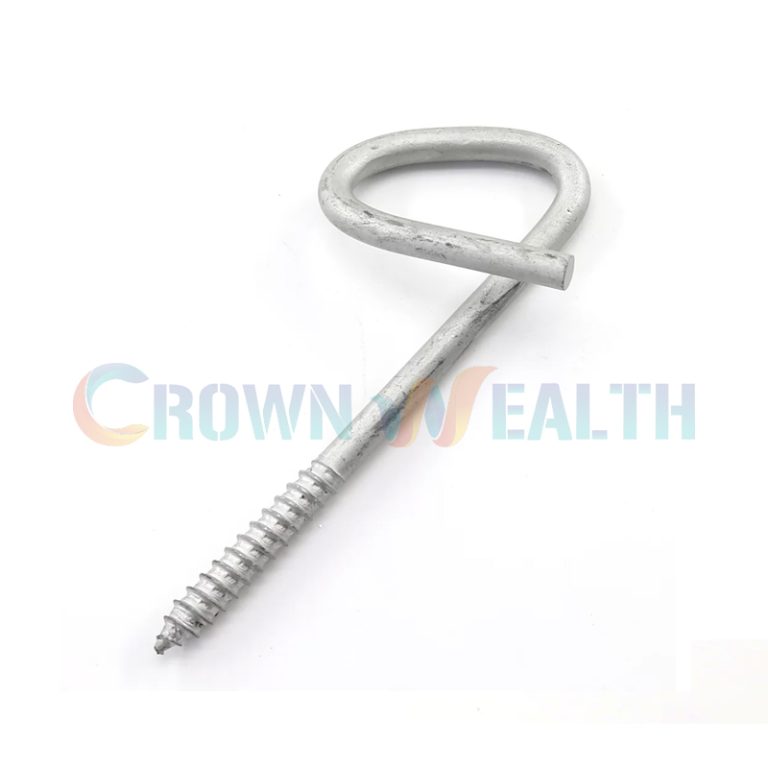

P House Hook wasdesigned to secure CATV drop cable to the side of a subscriber’s house by either accepting the bail of drop wire clamps or by wrapping the support wire of drop cable around the screw eye.
P House Hook wasdesigned to secure CATV drop cable to the side of a subscriber’s house by either accepting the bail of drop wire clamps or by wrapping the support wire of drop cable around the screw eye.
Description
P House Hook was designed to secure CATV drop cable to the side of a subscriber’s house by either accepting the bail of drop wire clamps or by wrapping the support wire of drop cable around the screw eye.
Main Features:
● Used to support drop wire clamps, dead end clamps, and service drops on utility poles and buildings.
● Manufactured with curved upward “fetter” type thread that can be either wrenched or driven.
● The knurled ring was provided to ensure proper driving depth.
● Support wire of drop cable around the screw eye.
● Formed from AISI 1016 Steel.
● P House Hooks are mechanically galvanized to meet ASTM Specification B695, Class 50, Type 1.
| PARTS NO. | DESCRIPTION | MATERIAL | SIZE |
| CW-PH | P House Hook | Galvanized Steel | 3/16″x3-3/4″ |
| 3/16″x4-1/2″ | |||
| 1/4″x4-1/2″ | |||
| 5/16″x5-1/2″ |
Description
P House Hook was designed to secure CATV drop cable to the side of a subscriber’s house by either accepting the bail of drop wire clamps or by wrapping the support wire of drop cable around the screw eye.
Main Features:
● Used to support drop wire clamps, dead end clamps, and service drops on utility poles and buildings.
● Manufactured with curved upward “fetter” type thread that can be either wrenched or driven.
● The knurled ring was provided to ensure proper driving depth.
● Support wire of drop cable around the screw eye.
● Formed from AISI 1016 Steel.
● P House Hooks are mechanically galvanized to meet ASTM Specification B695, Class 50, Type 1.
| PARTS NO. | DESCRIPTION | MATERIAL | SIZE |
| CW-PH | P House Hook | Galvanized Steel | 3/16″x3-3/4″ |
| 3/16″x4-1/2″ | |||
| 1/4″x4-1/2″ | |||
| 5/16″x5-1/2″ |
