It has higher supporting capability of dynamic stress,suspend the ADSS cable to the poles/ towers with corner angle of less than or equal to 25°in straight lines. The angle of single-side suspensions is between 15- 18°.
It has higher supporting capability of dynamic stress,suspend the ADSS cable to the poles/ towers with corner angle of less than or equal to 25°in straight lines. The angle of single-side suspensions is between 15- 18°.

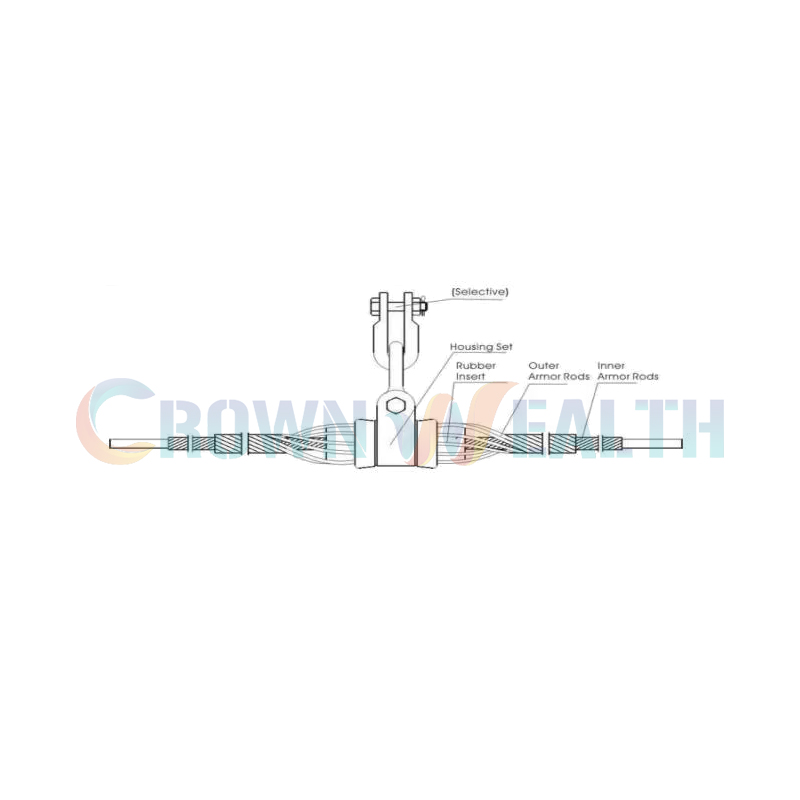

Component
Inner armor rods, outer armor rods, rubber clamp piece, cover shell, right-angle hanging loop, U-shaped hanging loop, bolt, nut, gasket etc.
Function
It has higher supporting capability of dynamic stress,suspend the ADSS cable to the poles/ towers with corner angle of less than or equal to 25°in straight lines. The angle of single-side suspensions is between 15- 18°.
| ADSS Diameter(mm) | Failing load (KN) | |||||
| 9.5-10 | 200 | ~ | ~ | ~ | ~ | ~ |
| 10.1-11.1 | 200 | 300 | 400 | ~ | ~ | ~ |
| 12.3-13.3 | 200 | 300 | 400 | 500 | ~ | ~ |
| 13.4-14.4 | 200 | 300 | 400 | 500 | 600 | 700 |
| 14.5-15.5 | 200 | 300 | 400 | 500 | 600 | 700 |
| 15.6-16.6 | 200 | 300 | 400 | 500 | 600 | 700 |
| 16.7-17.7 | 200 | 300 | 400 | 500 | 600 | 700 |
| 17.8-18.8 | 200 | 300 | 400 | 500 | 600 | 700 |
| 18.9-19.9 | 200 | 300 | 400 | 500 | 600 | 700 |
| 20-21 | 200 | 300 | 400 | 500 | 600 | 700 |
| 21.1-22 | 200 | 300 | 400 | 500 | 600 | 700 |
Component
Inner armor rods, outer armor rods, rubber clamp piece, cover shell, right-angle hanging loop, U-shaped hanging loop, bolt, nut, gasket etc.
Function
It has higher supporting capability of dynamic stress,suspend the ADSS cable to the poles/ towers with corner angle of less than or equal to 25°in straight lines. The angle of single-side suspensions is between 15- 18°.
| ADSS Diameter(mm) | Failing load (KN) | |||||
| 9.5-10 | 200 | ~ | ~ | ~ | ~ | ~ |
| 10.1-11.1 | 200 | 300 | 400 | ~ | ~ | ~ |
| 12.3-13.3 | 200 | 300 | 400 | 500 | ~ | ~ |
| 13.4-14.4 | 200 | 300 | 400 | 500 | 600 | 700 |
| 14.5-15.5 | 200 | 300 | 400 | 500 | 600 | 700 |
| 15.6-16.6 | 200 | 300 | 400 | 500 | 600 | 700 |
| 16.7-17.7 | 200 | 300 | 400 | 500 | 600 | 700 |
| 17.8-18.8 | 200 | 300 | 400 | 500 | 600 | 700 |
| 18.9-19.9 | 200 | 300 | 400 | 500 | 600 | 700 |
| 20-21 | 200 | 300 | 400 | 500 | 600 | 700 |
| 21.1-22 | 200 | 300 | 400 | 500 | 600 | 700 |
