- CW-SODC: Side Opening Dead-end Clamp

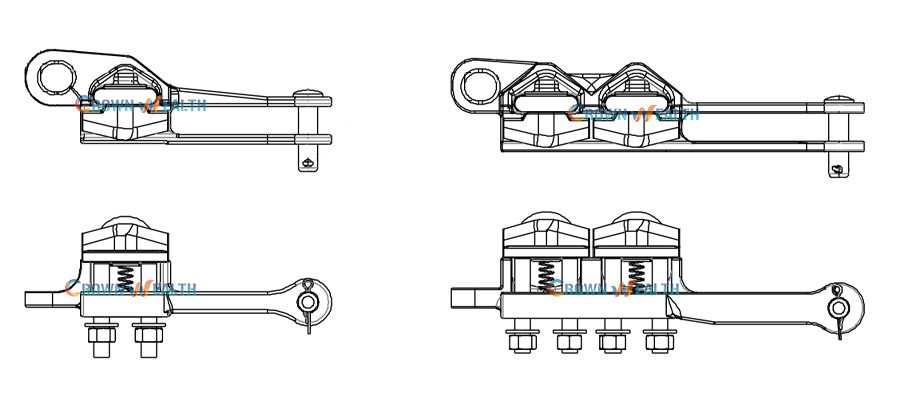

The straight line side open dead end clamp has two types, single U-bolt and double U-bolt. The straight line dead end clamp used for clamping and anchoring cables or conductors in overhead transmission lines is a cast, easy to use, low-cost side open dead end clamp.
The straight line side open dead end clamp has two types, single U-bolt and double U-bolt. The straight line dead end clamp used for clamping and anchoring cables or conductors in overhead transmission lines is a cast, easy to use, low-cost side open dead end clamp.
Description

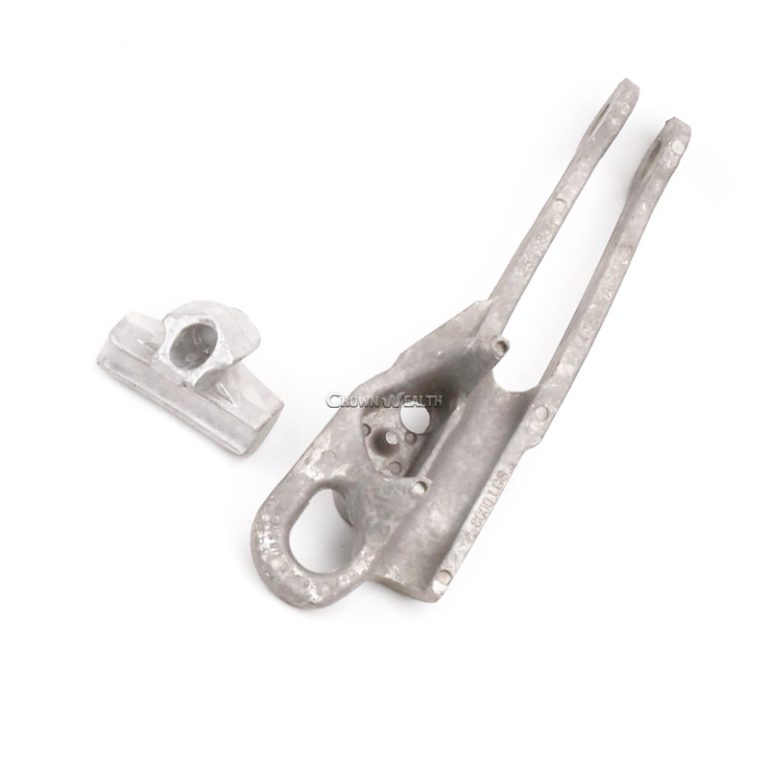

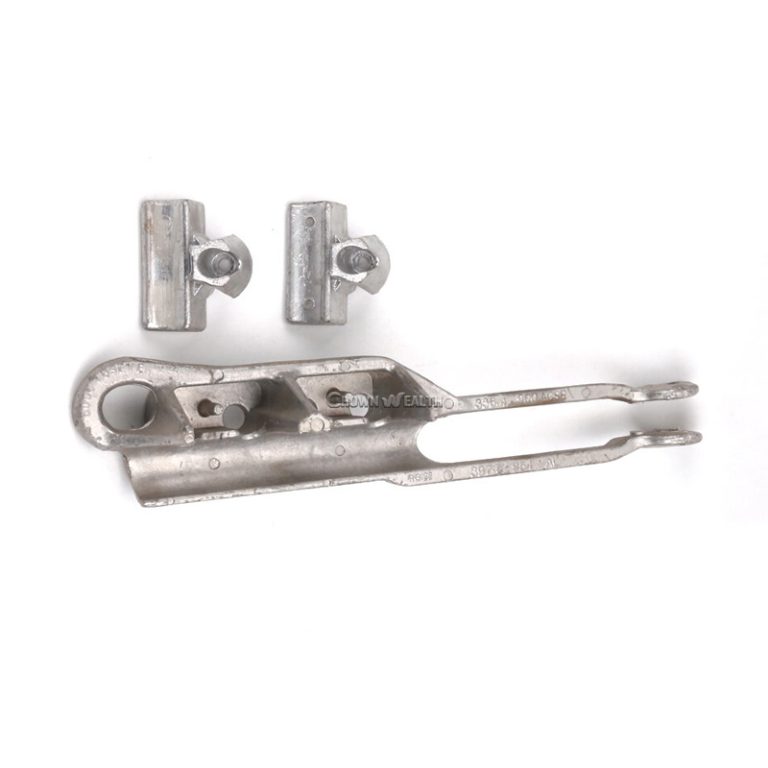

The straight line side open dead end clamp includes a body and U-bolts and other accessories. The body and retainer are cast from aluminum, and the U-bolts and other accessories are made of high-quality galvanized steel. It is corrosion-resistant and ensures long-term durability.
The retainer is fixed to the body by a U-bolt, one end of which has a U-shaped clamp mouth formed, a cotter pin can be inserted into the U-shaped clamp to support the clamp to the supporting structure, and the other end is formed with a pull eye.
The side opening dead end clamp is an outstanding device that provides a revolutionary solution for electrical connections. The side opening dead end clamp offers many advantages over traditional clamping methods, including ease of installation, durability, reliability, and versatility.
Features
U-Bolts are captive
Spring loaded side opening
Wire Compatibility ACSR; AAC; AAAC; ACAR
Recommended torque values = 40-45 Ft. Lbs.
Material
Body and Keeper: Aluminum Alloy A356-T6
Cotter Pin and Compression Spring: Stainless steel
Hardware: Steel hot dip galvanized ASTM A-153
It should be noted that the body has a low profile and can be easily molded in a mold with a straight parting line. The body is molded with one mold to form the upper body part A and another mold to form the lower body part B, and the mold has a straight interface. This feature significantly improves the cost-effectiveness of the design of the present invention.
At Hbcrownwealth, we specialize in providing high-quality, durable, and easy-to-install Deadend Clamps for overhead power lines, and telecommunications applications. With years of experience in the industry, weโve built a reputation as a reliable partner for cable management solutions, offering products that meet the highest standards of performance and safety.
Let us be your trusted partner in securing and anchoring your cables with our Side Opening Deadend Clamps. Contact us today to learn more about our products and get a customized quote for your next project!
Parameters
| Parts No. | Description | Material | Conductor Range |
| CW-SODC-88 | Side Opening Deadend Clamp | Aluminum Alloy๏ผHot Dip Galvanized Steel | #4-#556 ACSR, #2โ #556 AL |
| CW-SODC-116 | #336-#900 ACSR, #350โ #954 AL |
Description
The straight line side open dead end clamp includes a body and U-bolts and other accessories. The body and retainer are cast from aluminum, and the U-bolts and other accessories are made of high-quality galvanized steel. It is corrosion-resistant and ensures long-term durability.
The retainer is fixed to the body by a U-bolt, one end of which has a U-shaped clamp mouth formed, a cotter pin can be inserted into the U-shaped clamp to support the clamp to the supporting structure, and the other end is formed with a pull eye.
The side opening dead end clamp is an outstanding device that provides a revolutionary solution for electrical connections. The side opening dead end clamp offers many advantages over traditional clamping methods, including ease of installation, durability, reliability, and versatility.
Features
U-Bolts are captive
Spring loaded side opening
Wire Compatibility ACSR; AAC; AAAC; ACAR
Recommended torque values = 40-45 Ft. Lbs.
Material
Body and Keeper: Aluminum Alloy A356-T6
Cotter Pin and Compression Spring: Stainless steel
Hardware: Steel hot dip galvanized ASTM A-153
It should be noted that the body has a low profile and can be easily molded in a mold with a straight parting line. The body is molded with one mold to form the upper body part A and another mold to form the lower body part B, and the mold has a straight interface. This feature significantly improves the cost-effectiveness of the design of the present invention.
At Hbcrownwealth, we specialize in providing high-quality, durable, and easy-to-install Deadend Clamps for overhead power lines, and telecommunications applications. With years of experience in the industry, weโve built a reputation as a reliable partner for cable management solutions, offering products that meet the highest standards of performance and safety.
Let us be your trusted partner in securing and anchoring your cables with our Side Opening Deadend Clamps. Contact us today to learn more about our products and get a customized quote for your next project!
Parameters
| Parts No. | Description | Material | Conductor Range |
| CW-SODC-88 | Side Opening Deadend Clamp | Aluminum Alloy๏ผHot Dip Galvanized Steel | #4-#556 ACSR, #2โ #556 AL |
| CW-SODC-116 | #336-#900 ACSR, #350โ #954 AL |
