CW-STE: Square Tube Extension for Pole

Description

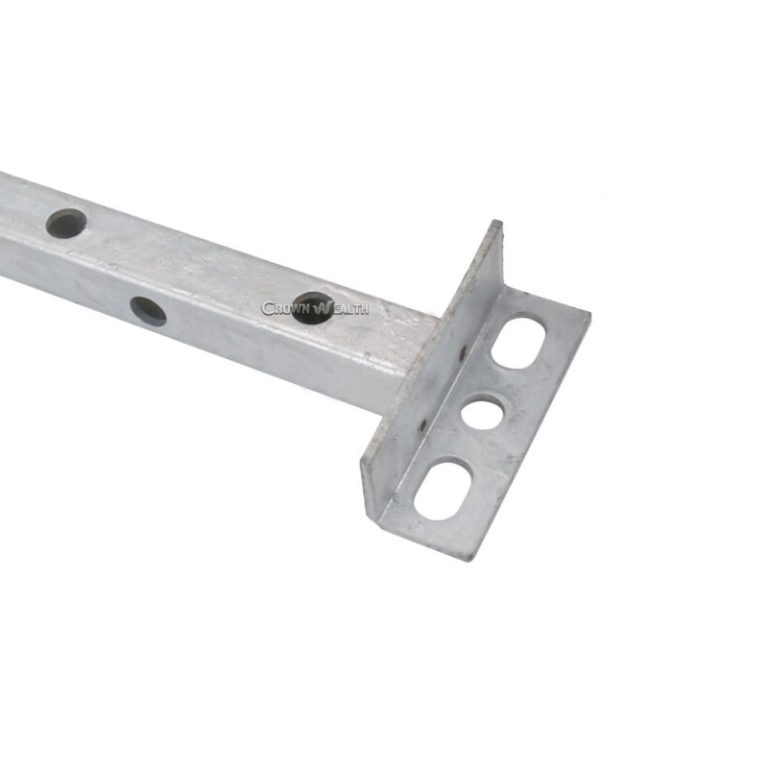

The square tube extension for pole is designed to be mounted on wood, metal or composite poles, but also on electrical cross arm or masts, depending on the load already on the pole.

It is mainly used when the optical fiber cannot be installed directly on the existing pole above the telephone line (for example: not enough space, or too much load on the pole / too many cables are present).

Parameters

Features and Benefits

Network: FTTH, FTTx

Material: Galvanized steel

Mounts on all types of poles: wooden, metal or composite

Welded plates equipped with bottom holes allowing double anchoring applications in alignment with the holes used for mounting the cross arm

Mounted on pre-drilled poles or with pole band, on the opposite side or side of the already installed telecommunication network.

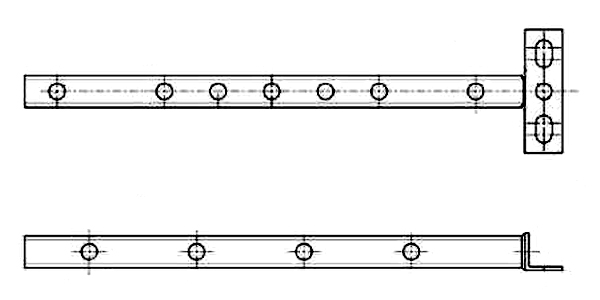

Thanks to its 11 fixing holes placed on both edges, the square tube extension for pole provides different alternatives for positioning the top and bottom fixing point. It can be installed either opposite the existing fittings or perpendicularly depending on the free space and the ease of fixing.

Optional Fixing Accessories for Extension of Telecom Pole

– 20 x 0.7 mm steel banding

– Through fixing bolt, nut

– Low point fixing lag screw

– Curved support plate for fixing the low point of the extension

– Cross arm assembly bolt

– Cross arm with 11 holes

Application

The deployment of optical fiber in aerial can be done on different types of utility poles:

– In wood

– In metal

– In concrete

– In composite

And on already existing poles belonging either to electricity network or to telecom network.

The installation of the extension for telecom pole can be carried out on a wooden pole, a metal pole and a concrete pole. Depending on the material of the post, it can be installed in different ways.

Installation on a pole, for its part, is done with a bolt and a curved support plate

– Front installation, with reuse of a bolt

– Side installation, fixing with two bolts
